Product Overview

The Professional Variable Acute Elbow is designed for connecting 42.4mm tubes at angles ranging from 40° to 70°. This innovative solution provides a reliable alternative to traditional bending methods, ensuring a sturdy and secure connection for various applications.

Key Features

• Variable angle adjustment from 40° to 70° for versatile usage.
• Compatible with 42.4mm tube diameter, making it suitable for standard construction projects.
• Robust design to withstand structural demands, providing long-lasting use.
• Easy installation, allowing for efficient assembly in various configurations.

Applications

This variable acute elbow is typically used in:

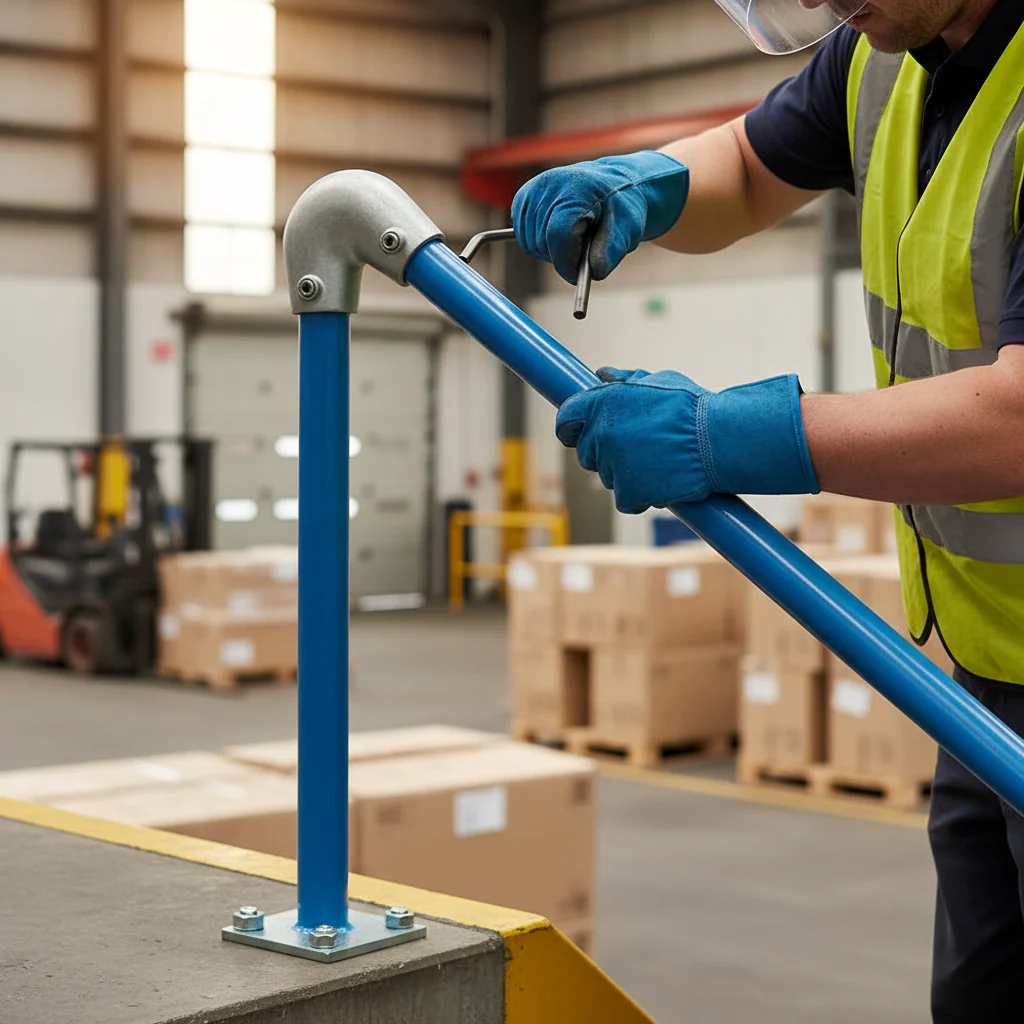

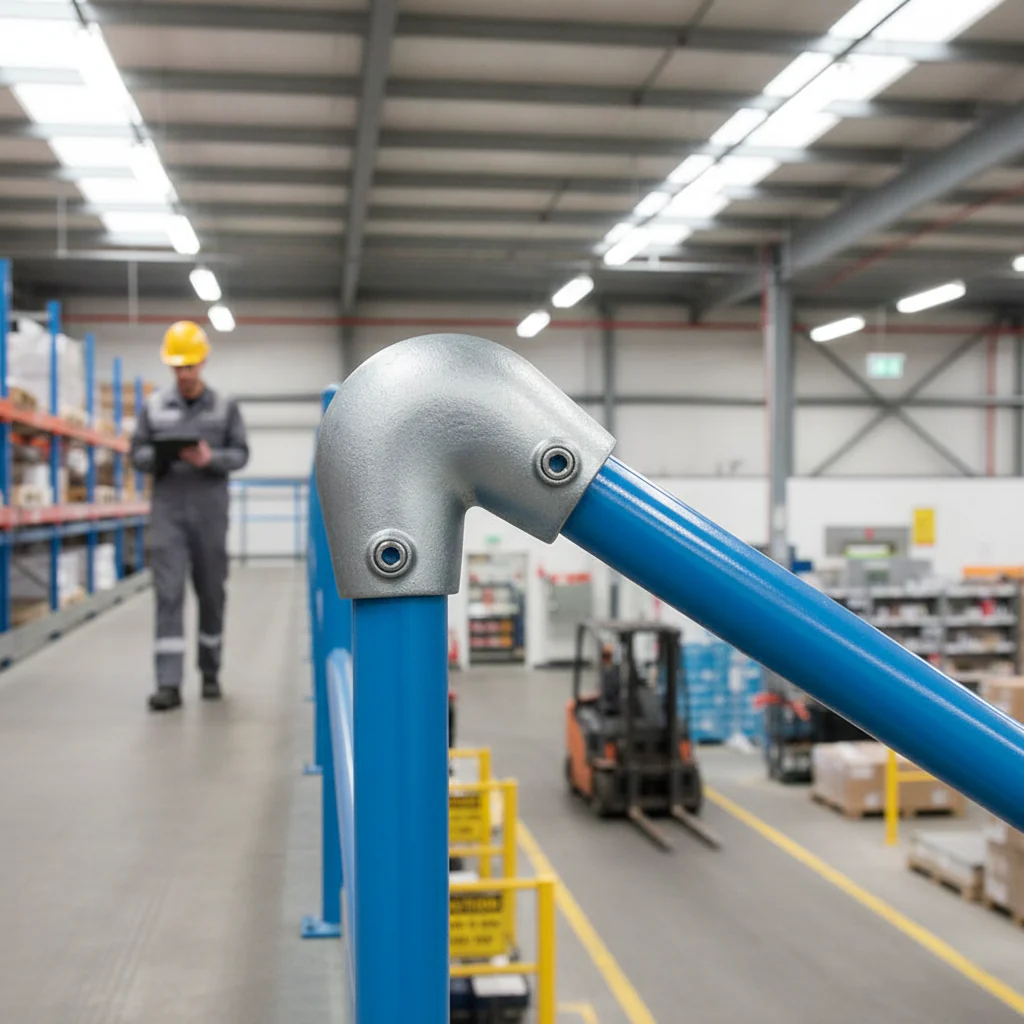

• Joining top rails to uprights in fence construction.
• Framework assembly for industrial applications.
• Custom structures requiring precise angle adjustments.

Technical Specifications

Specification	Value
Angle Adjustment	40° - 70°
Tube Compatibility	42.4mm
Weight	0.9 kg
Length	120.0mm
Width	90.0mm
Material	Malleable Iron
Material finish	Galvanised

Frequently Asked Questions

1. Can this elbow be used with other tube sizes?

No, this elbow is specifically designed for use with 42.4mm tubes.

2. Is this elbow suitable for outdoor use?

Yes, the robust design ensures durability in various weather conditions.

3. How do I install the variable acute elbow?

Simply attach it to the ends of the tubes being joined to create the desired angle.
