Product Description

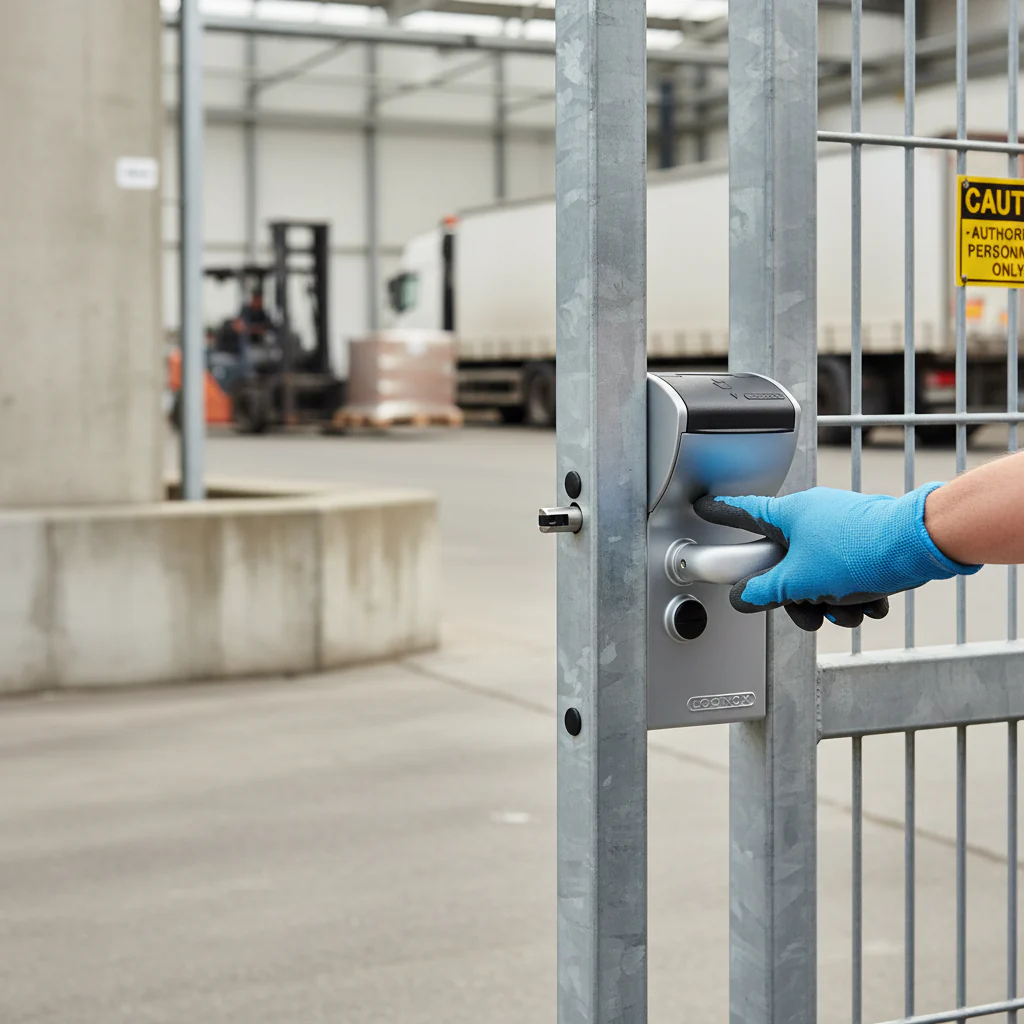

This premium mechanical code lock is engineered for box sections between 30mm to 50mm. Constructed with a robust aluminum housing and a durable stainless steel mechanism, this lock offers reliable security without the need for batteries or electricity, making it an ideal choice for gate access control.

The free Vinci mechanism allows for secure entrance using a code while permitting free exit, ensuring convenience and safety.

Key Features

• ISO 9227 KTL / E-coated lockbox which withstands up to 1000 hours of salt spray testing
• Entrance secured by user-defined code, with free exit functionality
• Code panel featuring stainless steel push buttons for durability
• Polyamide rain and dust cover to protect against the elements
• Easy and fast setup or modification of access codes
• Adjustable polyamide roller bolt for smooth closing
• Extremely strong and user-friendly mechanism
• Automatic code reset after opening by pushing the handle
• Integrated security press plate to prevent code detection
• Compatible with all standard locks

Dimensions & Specifications

Specification	Measurement
Box Section Compatibility	30mm - 50mm
Weight	2.26 kg
Length	218.0mm
Width	110.0mm
Depth	31.0mm

Technical Specifications

• Material: Aluminum housing, Stainless steel mechanism
• Protection: E-coating for corrosion resistance
• Security Features: Anti-code detection, adjustable roller bolt

FAQ

• How do I change the access code?
  Access codes can be easily modified using the code panel with stainless steel buttons.
• Is the lock weather-resistant?
  Yes, the polyamide cover protects the lock from rain and dust.
• Can this lock be used with other brands?
  Yes, it is exchangeable with all standard locks.
