Product Overview

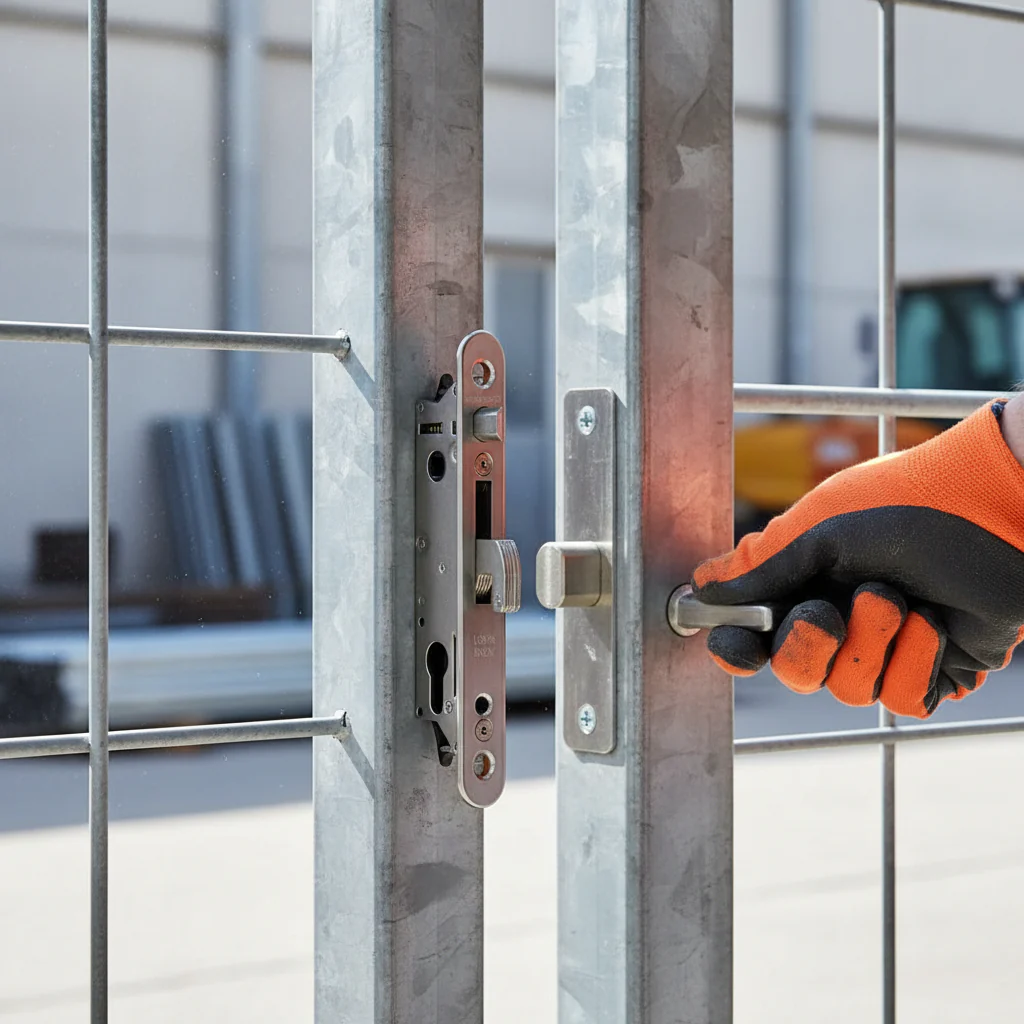

This Premium Insert Lock is designed specifically for 40mm box sections, featuring a robust stainless steel mechanism. It includes an adjustable self-latching bolt and hook, ensuring that the gate remains securely closed. The lock is compatible with metal, aluminum, and PVC gates, offering versatility in installation.

Key Features

• Lock mechanism equipped with a cover plate to prevent dirt penetration.
• Patented system eliminates the need for thread tapping, simplifying installation.
• Continuous adjustment of the daybolt up to 10 mm without removing the lock.
• Key-operated self-latching bolt for added security.
• All components, including the mechanism, hook, front plate, and latch bolt, are made from high-quality stainless steel.
• Easy to change the self-latching daybolt orientation from left to right.
• Throw of the hook measures 21mm for secure closure.
• The center distance between the cylinder and the handle is 92mm.

Compatibility

• Compatible with all Europrofile cylinders.
• UNIWING-compatible for additional versatility.
• Recommended keeps are available separately.

Installation Instructions

Thanks to the patented installation system, setting up this lock is quick and straightforward. Simply align the lock with the gate and secure it in place, ensuring that all components are properly adjusted for optimal performance.

Technical Specifications

Specification	Measurement
Throw of Hook	21mm
Center Distance (Cylinder to Handle)	92mm
Weight	0.52 kg

FAQ

• Can this lock be used on wooden gates? No, it is specifically designed for metal, aluminum, and PVC gates.
• Is the installation process complicated? No, the lock can be installed in seconds using the patented system.
• Are handles sold with the lock? No, handles and accessories need to be ordered separately.
