Product Overview

This Premium Electric Keep is designed for use with 50mm insert locks, providing a reliable fail close mechanism with a stop plate. With its robust construction and advanced features, it ensures high performance and durability in various applications.

Features

• Tested for up to 500,000 movements for superior reliability.
• Fast and easy installation with a Click-it fixing mechanism.
• High resistance to pressure on the latch bolt, rated at 300 kg.
• Deep closure of 17.5 mm of the latch bolt for enhanced security.
• Easy left or right configuration change to suit various installation needs.
• Corrosion-resistant housing made from black anodized aluminium.
• Operates on a voltage range of 12V-24V AC/DC.
• Power consumption of 10W at 12V and 0.8A at 24V.

Technical Specifications

Specification	Measurement
Voltage	12V-24V AC/DC
Power Consumption	10W / 0.8A (12V) - 0.4A (24V)
Latch Bolt Closure Depth	17.5 mm
Latch Bolt Pressure Resistance	300 kg
Weight	0.79 kg
Length	404.0mm
Width	59.0mm
Depth	42.0mm

Applications

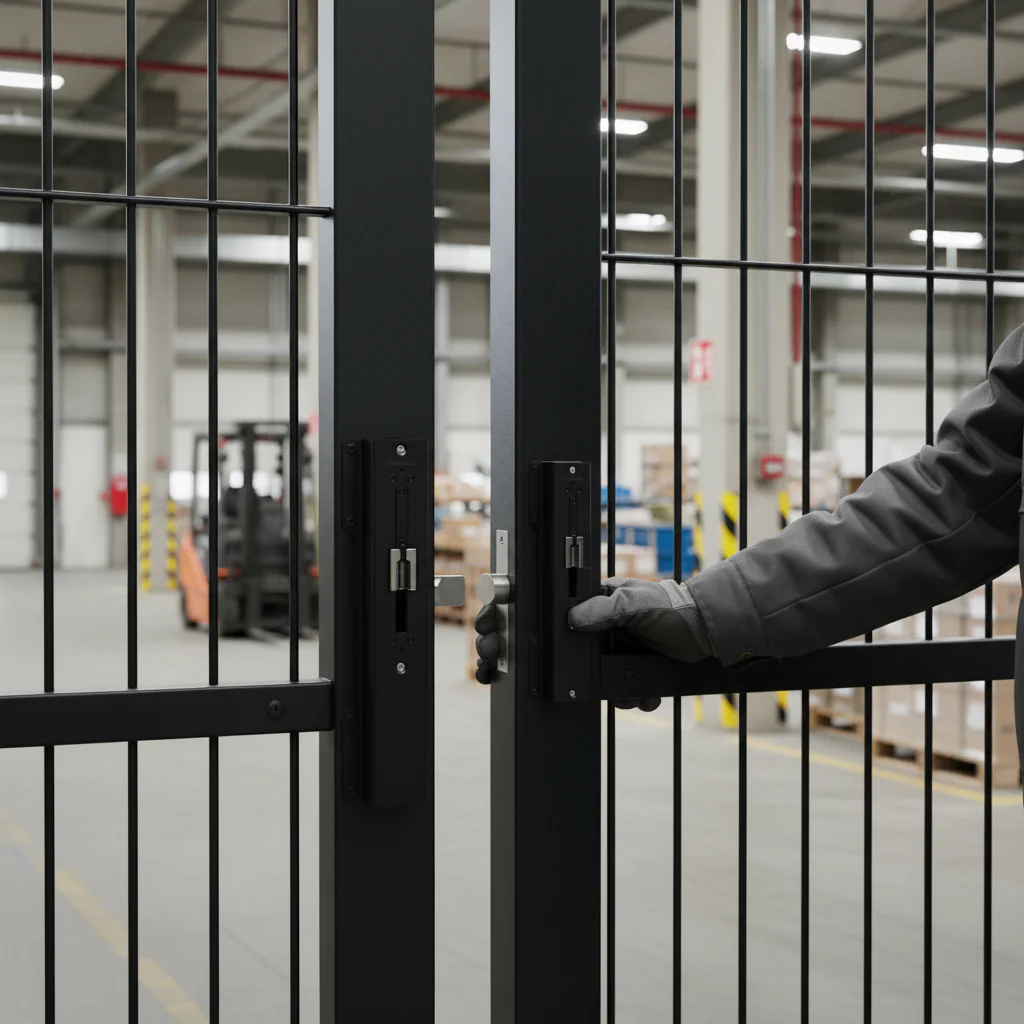

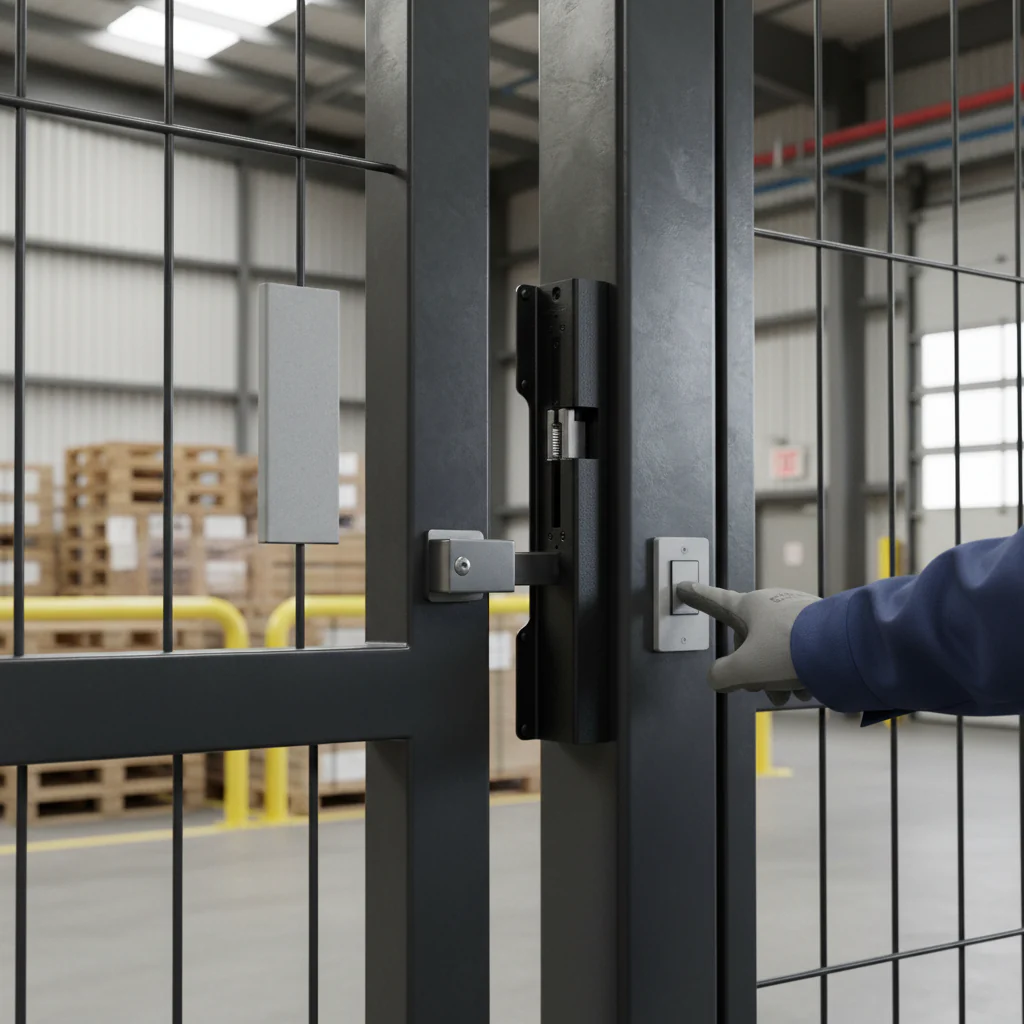

This electric keep is ideal for securing doors in commercial and industrial settings, providing reliable access control and enhanced security measures.

FAQs

• Q: Can this electric keep be used with other brands of locks?
  A: It is specifically designed for 50mm insert locks but may be compatible with other similar lock types.
• Q: What is the installation process like?
  A: Installation is fast and easy, utilizing a Click-it fixing mechanism.
• Q: Is the electric keep weather-resistant?
  A: Yes, it features a corrosion-resistant anodized aluminium housing suitable for various environments.
