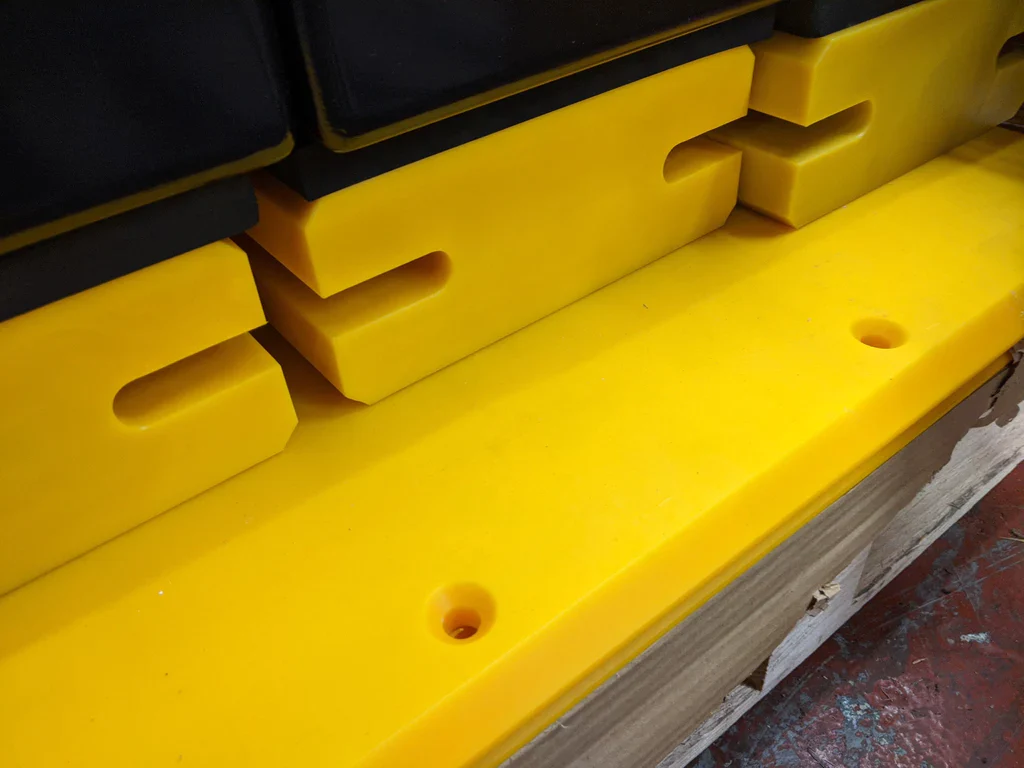

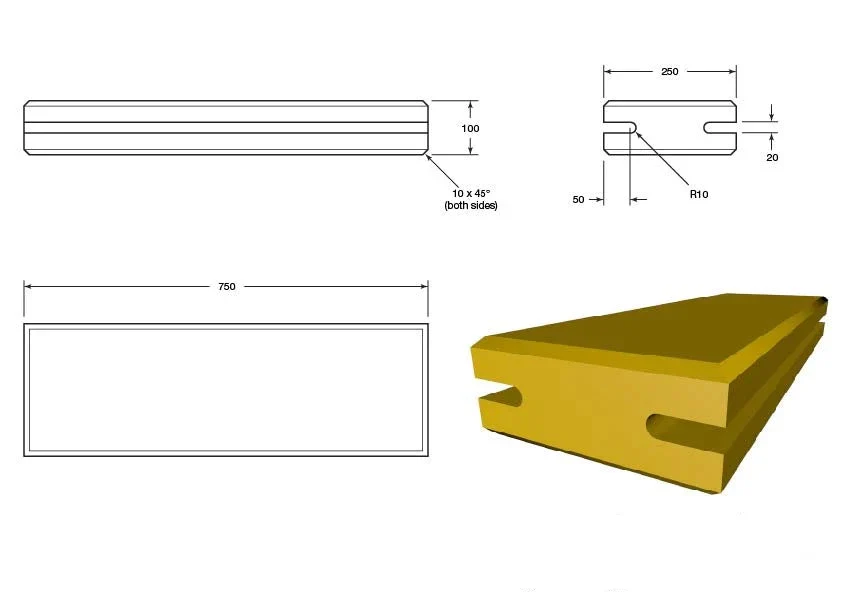

This nylon faced dock bumper design allows the hard-wearing nylon to slide up and down as the trailer moves.

The nylon front plate can be turned 180 degrees and reversed back to front giving up to 4x the life of a standard bumper.

This part should be attached to flat solid concrete without cracks or hollows.

• Approx Dims: 750 x 265 x 125mm.
• Weight: 38.5 kg

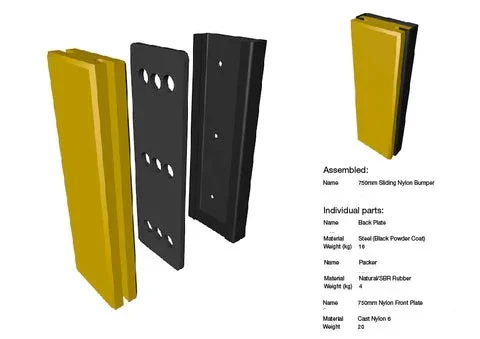

01. Component Of: SN804

Also available in black - special order only

• Approx Dims: 750 x 250 x 100 mm
• Weight: 20 kg

02. SN049 Packer:

The SN049 Packer is a 20mm thick piece of rubber designed to allow fine adjustment for the projection dimension of the dock bumper whilst maintaining the dock bumpers ability to compress.

• Approx Dims: 750 x 250 x 20 mm
• Weight: 5 kg

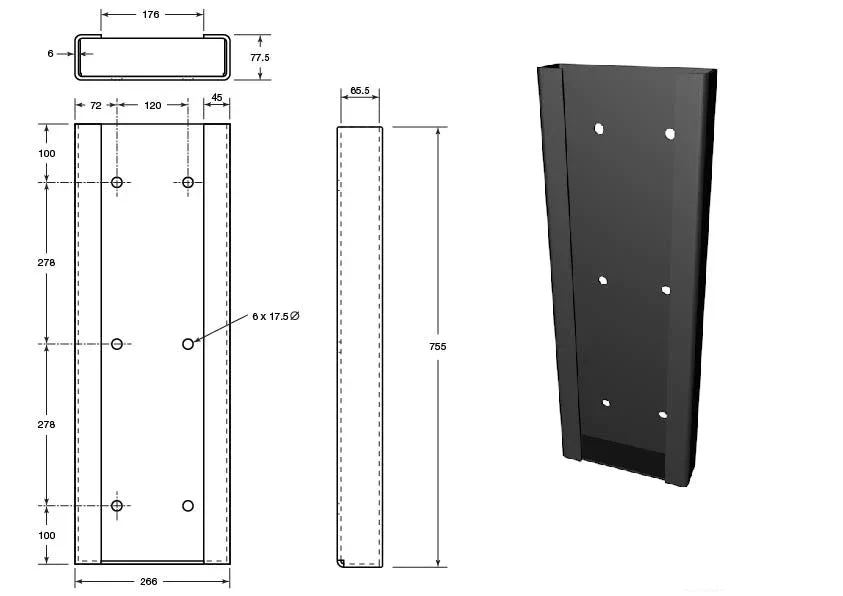

03. SN800 Back Plate:

SN800 Steel Cradle Back Plate, Black Powder Coat

• Approx Dims: 755 x 266 x 66 mm
• Weight: 26 kg
• Component Of: SN804
