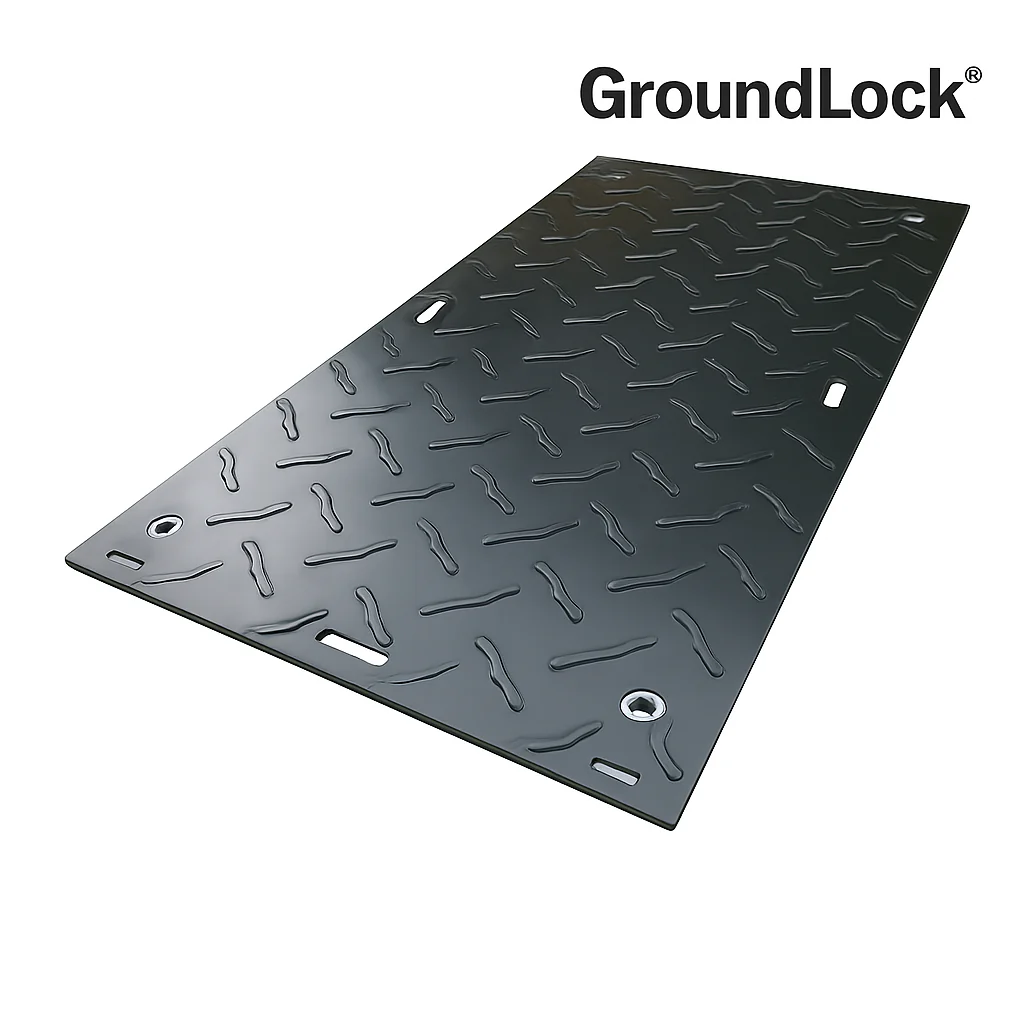

GroundLock® HDPE Ground Protection Mats – Heavy-Duty Temporary Road & Trackway Panels for Construction, HGV & Plant Access (2400×1200×15 mm, 44 kg)

Professional Ground Protection & Temporary Trackway System

Overview

Trusted by leading UK contractors, hire companies, and event operators, the GroundLock® HD Access Mat delivers professional-grade temporary access and ground protection for heavy plant, vehicles, and pedestrians.

Manufactured in the UK from 100 % recycled high-density polyethylene (HDPE), each mat provides exceptional strength-to-weight performance — supporting loads over 50 tonnes (depending on ground conditions). Weighing only 44 kg, they’re fully man-handleable, enabling two-person installation without lifting equipment.

Designed for the harshest environments, GroundLock® mats ensure safe, stable movement on soft, wet, or sensitive terrain, preventing ground damage and reinstatement costs.

Key Benefits

Man-Handleable & Portable: Six integrated hand holes for safe two-person handling and rapid installation.
Heavy-Duty Strength: Independently load-tested beyond 50 tonnes; ideal for excavators, telehandlers, and HGVs on unstable terrain.
Superior Traction: Dual-sided non-slip chevron tread provides maximum grip for tyres, tracks, and boots — even in rain or mud.
Quick-Fit Connection System: GroundLock® Hand-Hole Connectors fit in seconds without tools and cover open holes to prevent trip hazards.
Reinforcement Options: Add 3 mm mild-steel reinforcement plates for additional rigidity on long-term or heavy-plant projects.
Eco-Smart & Sustainable: Each mat saves ≈ 1.8 t CO₂ versus virgin plastic production and is 100 % recyclable at end of life.
Low Transport Cost: Lightweight design allows higher pallet volumes and lower haulage costs.
Custom Branding: Optional embossing with your company logo, website, or phone number (minimum order applies).

Technical Performance

Test Parameter	Result
Load Capacity	> 50 t (ground-dependent)
Deflection under 20 t axle load	< 5 mm
Operating Temperature Range	–40 °C to +60 °C
Ground Pressure Reduction	Up to 85 %
Testing Standards	BS EN 124 / ASTM D695 verified
Expected Lifespan	10 + years / > 1000 uses

Typical Applications

✅ Construction and civil engineering sites
✅ Utilities & telecom infrastructure projects
✅ Temporary roads and compound access routes
✅ Event flooring, car parks, & pedestrian walkways
✅ Turf and heritage ground protection
✅ Depots, storage yards, and laydown areas

Technical Details

Specification	Value
Size	2400 mm × 1200 mm × 15 mm
Weight	44 kg per mat
Material	100 % Recycled HDPE
Load Rating	Up to 50 + tonnes (ground-dependent)
Surface Finish	Dual-sided non-slip chevron tread
Handling	6 hand holes for two-person lift
Connection Type	GroundLock® Connectors / Steel Plates
Colour	Black (UV-stabilised)
Branding	Optional embossed logo / contact details

Real-World Results

Used by organisations including Sky, University of Cambridge, and UK construction & utilities contractors, GroundLock® HD mats have proven performance:

“Installed 120 GroundLock® mats for a utility site on wet clay — supported 35 t excavators with zero ground failure or reinstatement required.”
– Cambridge Infrastructure Project 2025

Sustainability

Made from 100 % recycled HDPE recovered from UK waste streams.
Reusable for over 1000 deployments.
Fully recyclable at end of life.
Each mat prevents ≈ 1.8 t CO₂ emissions compared to virgin polymer.

Key Advantages

Provides temporary roadways, trackways, and work platforms for vehicles and heavy machinery.
Prevents vehicle bog-downs, surface rutting, and reinstatement costs.
Reduces health & safety risks through anti-slip tread and covered hand holes.
Cuts logistics costs with lightweight, stackable design.
Backed by UK engineering standards and 10 + year life expectancy.

Trusted by Industry Professionals

GroundLock® is the UK’s professional choice for ground protection — combining engineering strength, sustainability, and British manufacture.

Summary

The GroundLock® HDPE Heavy-Duty Access Mat sets the new benchmark for reliable, sustainable, and truly man-handleable ground protection.
Tested, proven, and engineered for performance — it’s the next-generation alternative to timber, aluminium, and traditional HDPE trackway systems.

Used nationwide by civil engineers, utilities, and event contractors for professional ground protection.
